Diaphragm seals protect measuring instruments from corrosive, viscous, crystalline, corrosive, environmentally harmful or toxic media. When selecting diaphragm seals, users need to pay attention to two important criteria: one is the type of process connector (flange, thread and sterile connector); The second is the basic manufacturing method.
The diaphragm seal and measuring instrument can be assembled directly (standard) or by cooling element or flexible capillary (optional).

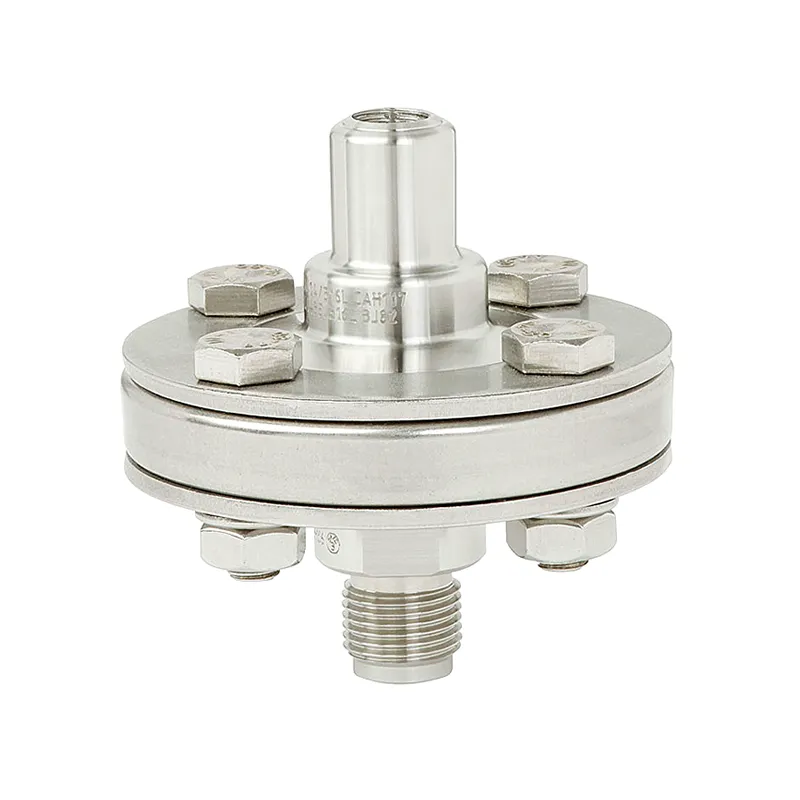

  • Z31.31-10

    Z31.31-10

    Threaded Connection Design

    Send Inquiry

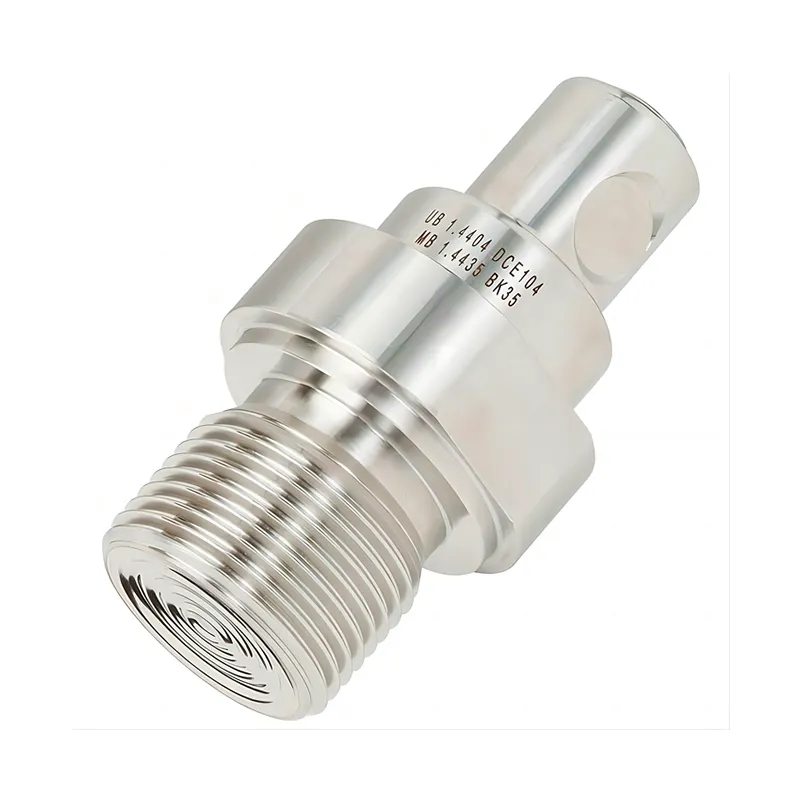

  • Z31.31-36

    Z31.31-36

    Flush Diaphragm or With Protective Cover

    Send Inquiry

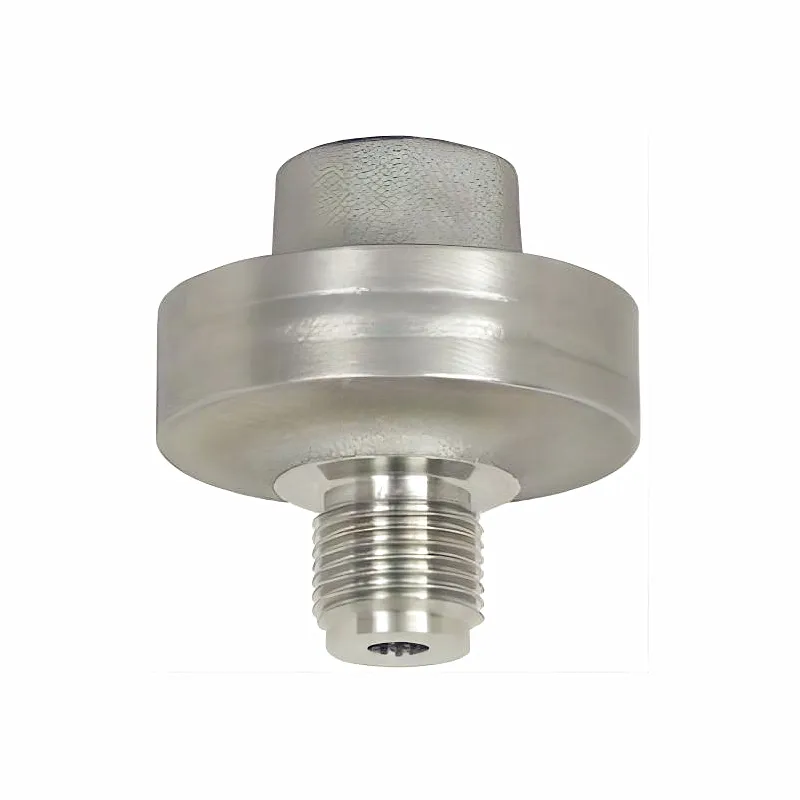

  • Z31.31-38

    Z31.31-38

    Economical Welded Structural Chemical SealFunctional characteristics:       Threaded process connection       With a built-in diaphragm, the diaphragm is fully welded structure       A wide selection of process connections and materials       Optional flat connection       The high pressure range can reach 100 MPa

    Send Inquiry
  • Z31.31-40

    Z31.31-40

    Threaded Connection Design, Large Working Volume

    Send Inquiry
