Home > Products > Petroleum Fracturing Seismic Pressure Gauge

Products

view

The petroleum fracturing seismic pressure gauge is mainly used for measuring pulsating medium pressure or static pressure on fracturing, cementing, or similar equipment in petroleum production. It has excellent seismic performance. The internal damping mechanism has a good damping effect on pressure pulsations within the entire measurement range, and no adjustment is required during use. Therefore, the gauge not only provides stable and clear indications when measuring severe pulsating pressure but also can withstand instantaneous pressure shocks (such as sudden pressure relief). In addition, the filling liquid in the gauge head enables it to work normally under conditions of strong environmental vibration at the installation position.

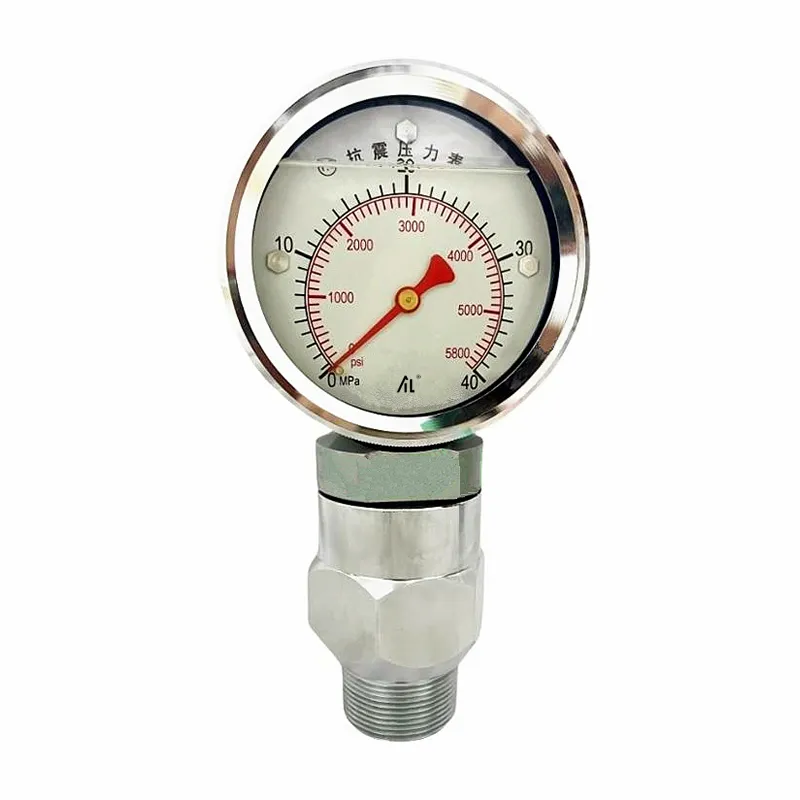

  • C33.31I-100

    C33.31I-100

    Nominal Size: 100mm Specifications range (MPa): 0-7, 0-16, 0-25, 0-40, 0-60, 0-80, 0-100, 0-120.AccuracyClass: 1.6%FS, 2.5%FS.Normal operating ambient temperature: -25°C to +55°C; -50°C to +55°C is also optional.Connection: R1", R2", R3", NPT1.5", NPT2", M20×1.5, M42×2, M36×2.

    Send Inquiry

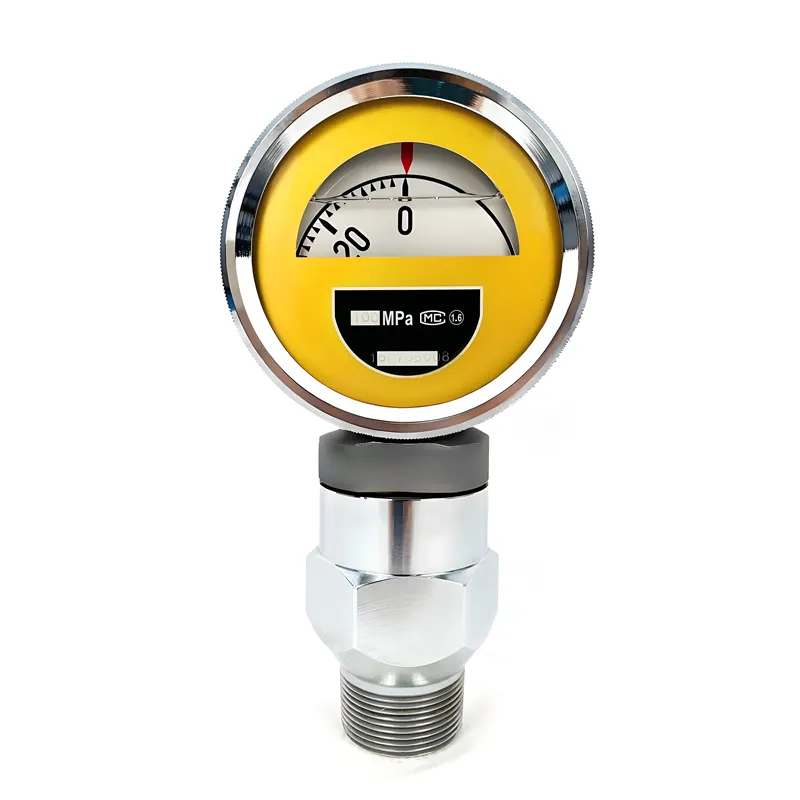

  • C33.31I-100B

    C33.31I-100B

    Nominal Size: 100mm Specifications range (MPa): 0-7, 0-16, 0-25, 0-40, 0-60, 0-80, 0-100, 0-120.AccuracyClass: 1.6%FS, 2.5%FS.Normal operating ambient temperature: -25°C to +55°C; -50°C to +55°C is also optional.Connection: R1", R2", R3", NPT1.5", NPT2", M20×1.5, M42×2, M36×2.

    Send Inquiry

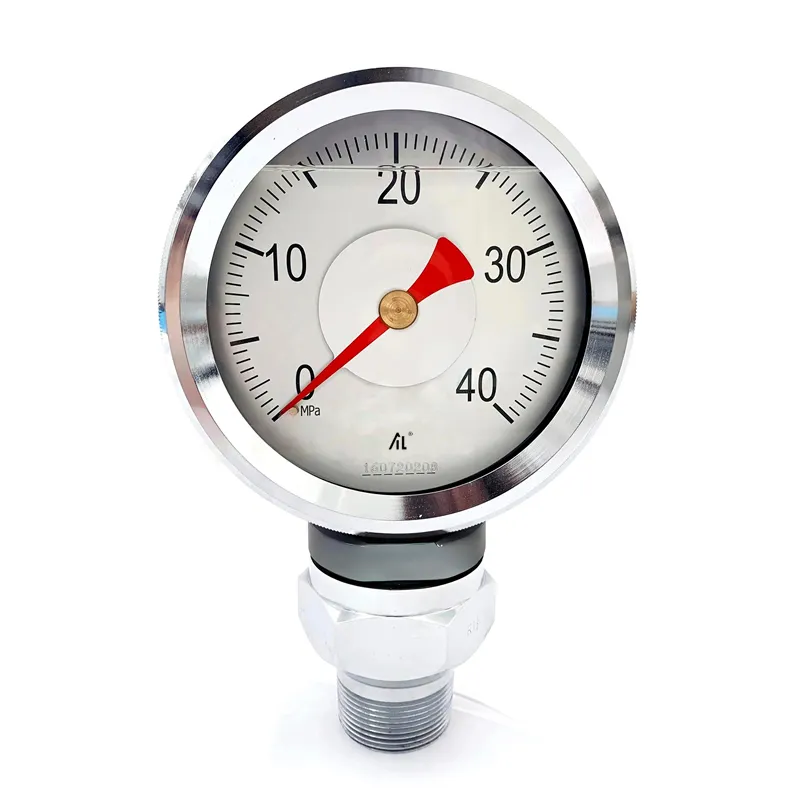

  • C33.31K-150

    C33.31K-150

    Nominal Size: 150mm Specifications range (MPa): 0-7, 0-16, 0-25, 0-40, 0-60, 0-80, 0-100, 0-120.AccuracyClass: 1.6%FS, 2.5%FS.Normal operating ambient temperature: -25°C to +55°C; -50°C to +55°C is also optional.Connection: R1", R2", R3", NPT1.5", NPT2", M20×1.5, M42×2, M36×2.

    Send Inquiry

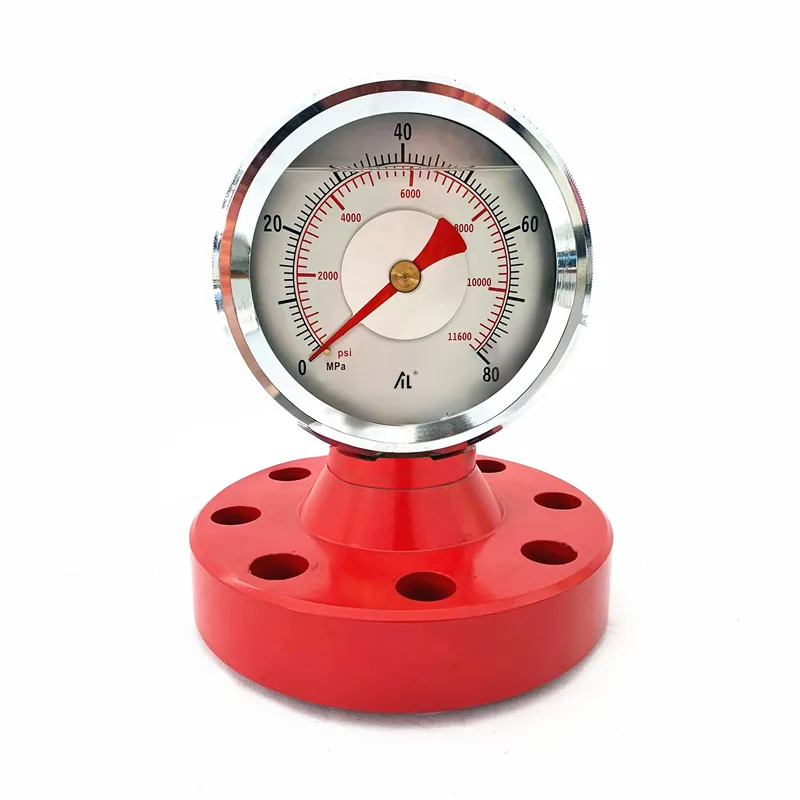

  • C33.31K-150F

    C33.31K-150F

    Nominal Size: 150mm Pressure Range (MPa): 0-16, 0-25, 0-40, 0-60, 0-80, 0-100, 0-120, 0-160Accuracy Class: 1.6%FS, 2.5%FSConnection Type: Flange ConnectionApplicable Temperature: -40℃ to +55℃

    Send Inquiry

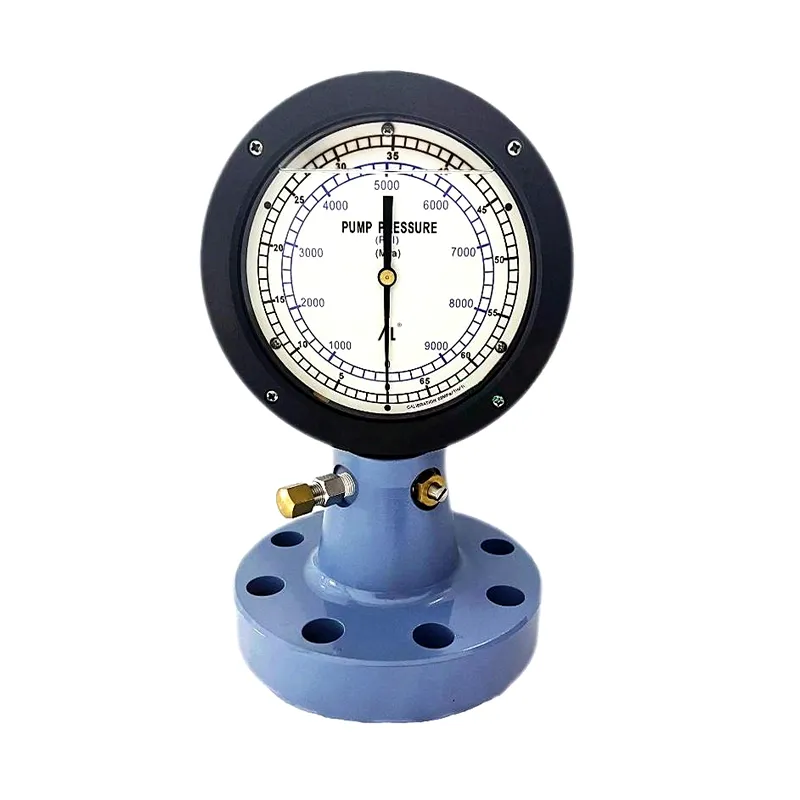

  • C33.31K-150Y

    C33.31K-150Y

    Nominal Size: 150mm Pressure Range: 0~15000psiAccuracy Class: 1.0%FS, 1.6%FSConnection Type: Union Connection, Flange ConnectionApplicable Temperature: -45℃ to +75℃

    Send Inquiry

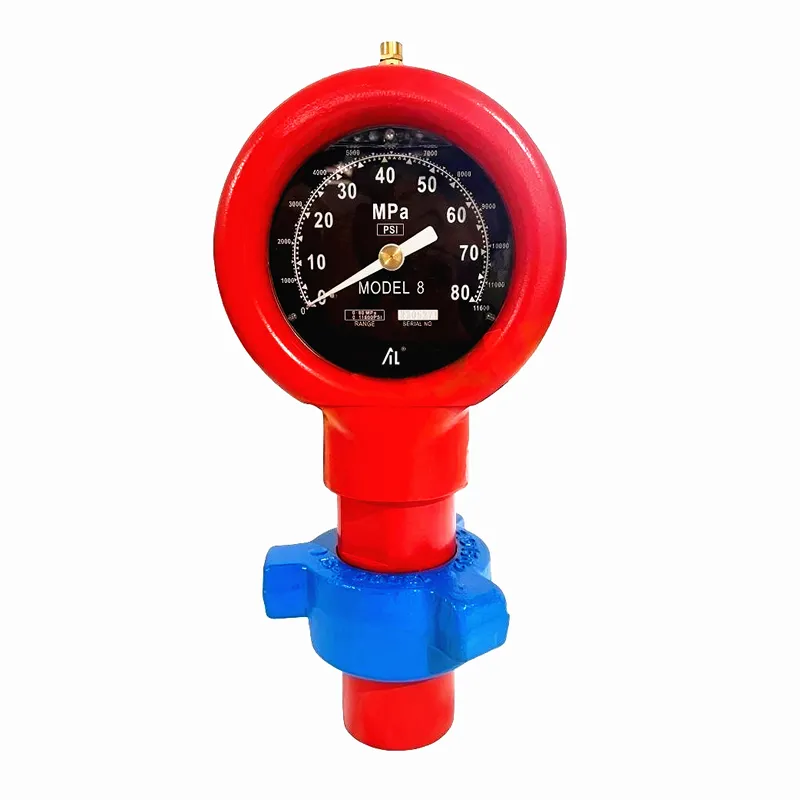

  • C03.31L-200Y

    C03.31L-200Y

    Nominal Size: 200mm Pressure Range (MPa): 0-16, 0-25, 0-40, 0-60, 0-80Accuracy Class: 1.6%FS, 2.5%FSConnection Type: Union Connection, Flange ConnectionOperation temperature: -45℃ to +55℃

    Send Inquiry

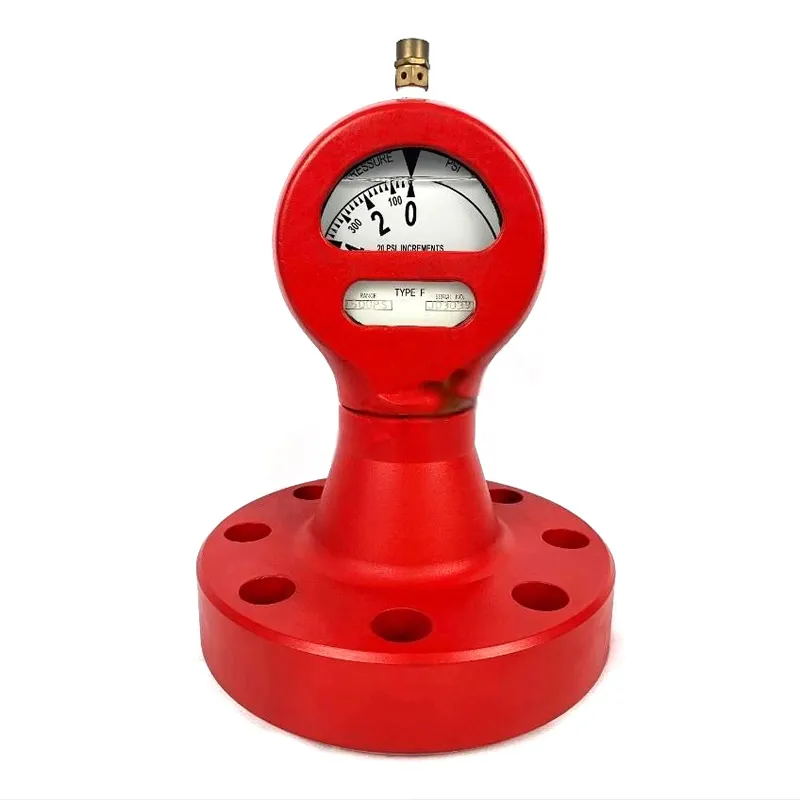

  • C33.31-FF

    C33.31-FF

    Nominal Size: 100mm Measurement range (MPa): 0-7, 0-16 , 0-25 , 0-35 ,0- 40 , 0-60 , 0-80 , 0-100 , 0-120 , 0-160Working environment: -50°C to +55°CAccuracyClass: 1.6%FS, 2.5%FSConnection Type: Union Connection

    Send Inquiry

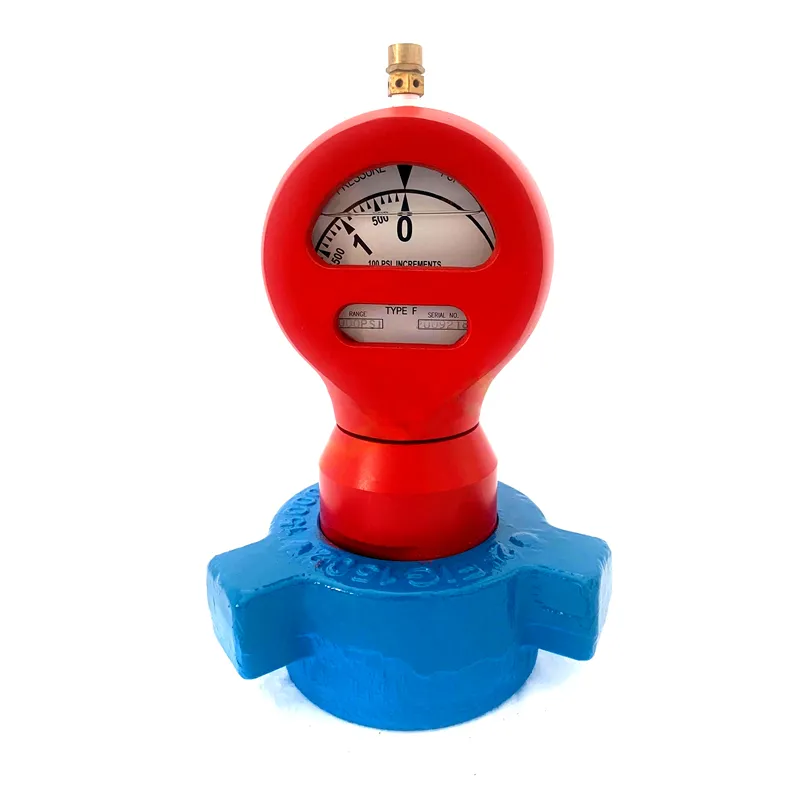

  • C33.31-FY

    C33.31-FY

    Nominal Size: 100mm Pressure Range (MPa): 0-16, 0-25, 0-40, 0-60, 0-80, 0-100, 0-120, 0-160Accuracy Class: 1.6%FS, 2.5%FSConnection Type: Union Connection, Flange ConnectionApplicable Temperature: -25℃ to +55℃

    Send Inquiry
