A pressure switch is a device that automatically switches circuits when the measured pressure reaches a set value. It is mainly composed of a pressure-sensing element, a signal processing unit, and an actuator. When pressure acts on the pressure-sensing element (such as a diaphragm or bellows), it deforms and transmits the signal to the signal processing unit. Once the preset threshold is reached, the actuator triggers to connect or disconnect the circuit.
It has wide applications: in industry, it monitors pipeline pressure to prevent overpressure, controls the start/stop of oil pumps in hydraulic systems, and maintains stable air pressure in air compressors. Household devices like coffee machines and water heaters also use it. Classified by principle, there are mechanical diaphragm types, electronic types, etc. When selecting a pressure switch, factors such as range, accuracy, and medium compatibility should be considered. During installation, ensure the pressure-measuring point is accurate and avoid vibration to ensure it reliably realizes pressure monitoring and control functions.

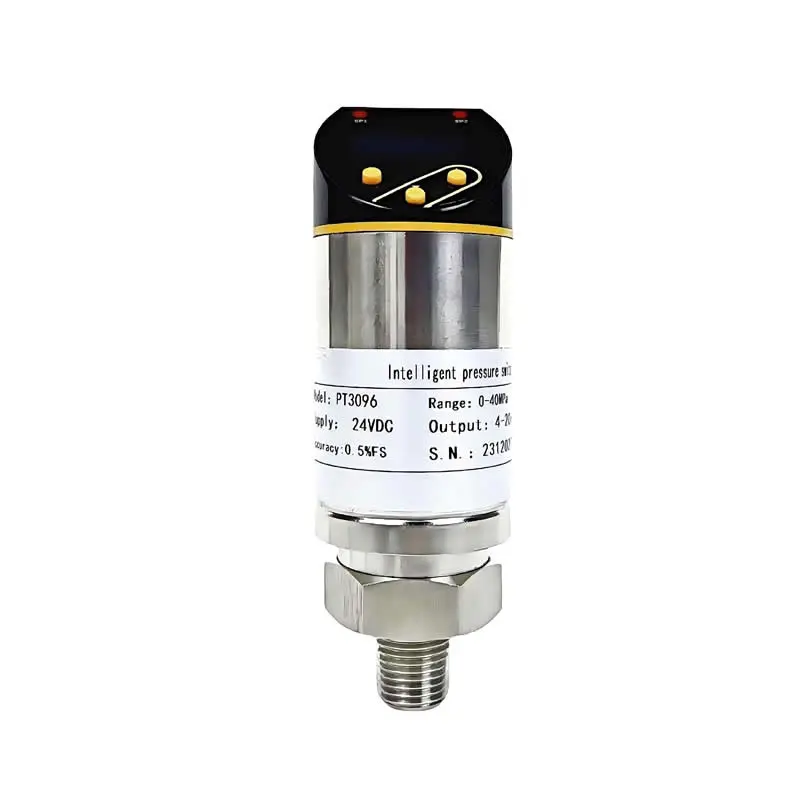

  • ZSD

    ZSD

    Case Material: 304SS Connection Material: 316SS Protection Class (EN60529): IP65 Overload Capacity:                                15~300%FS                                150~300%FS Accuracy: 0.2%FS, 0.5%FS Power Supply Voltage: DC24V (12~30V) Output Modes:                      &nbsp...

    Send Inquiry

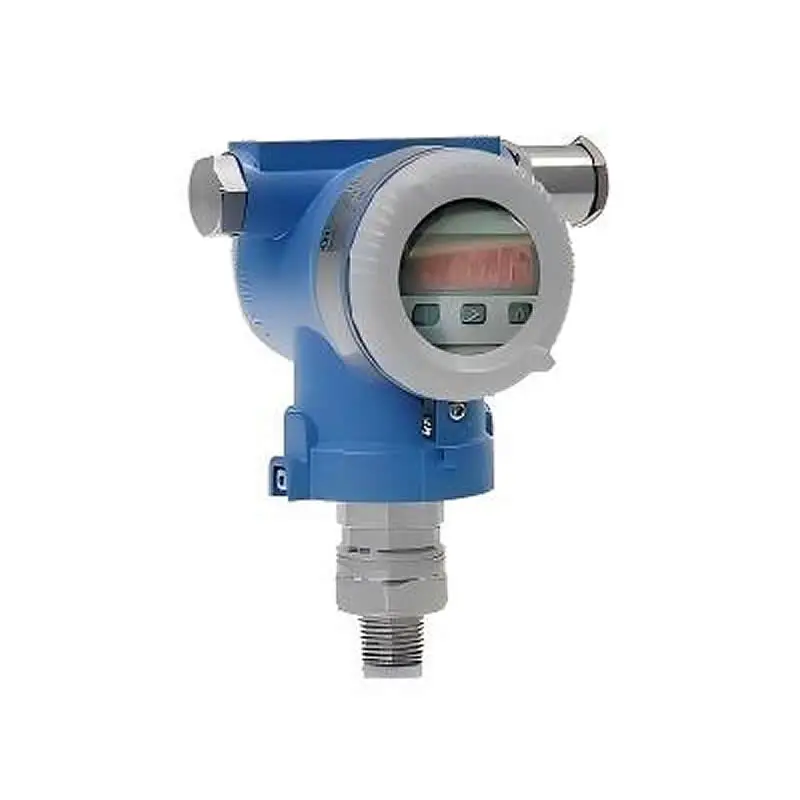

  • GK-K720

    GK-K720

    Measurement principle: Diffused silicon piezoresistive Range pressure range: 0MPa~100MPa Accuracy class (reference temperature 25℃):                                                                           Class 0.5 (0KPa~100MPa)                      &nb...

    Send Inquiry

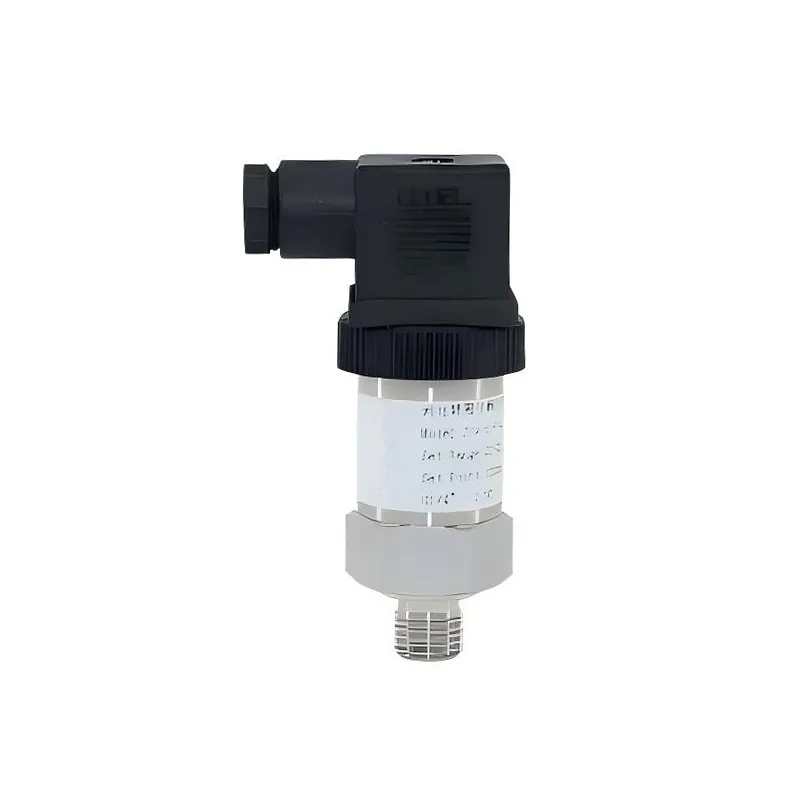

  • ZSA

    ZSA

    Case Material: Galvanized steel or stainless steel Connection Material: Galvanized steel or stainless steel Repeatability (reference temperature 25°C): ±2%FS Protection Class (EN60529): IP65 Process Connection: G1/4" (DIN3852) or 1/4"NPT Measuring Element: Diaphragm or piston                                   Sealing MaterialsDiaphragm: NBRPiston: PTFE (dynamic), NBR or fluororubber (static)...

    Send Inquiry

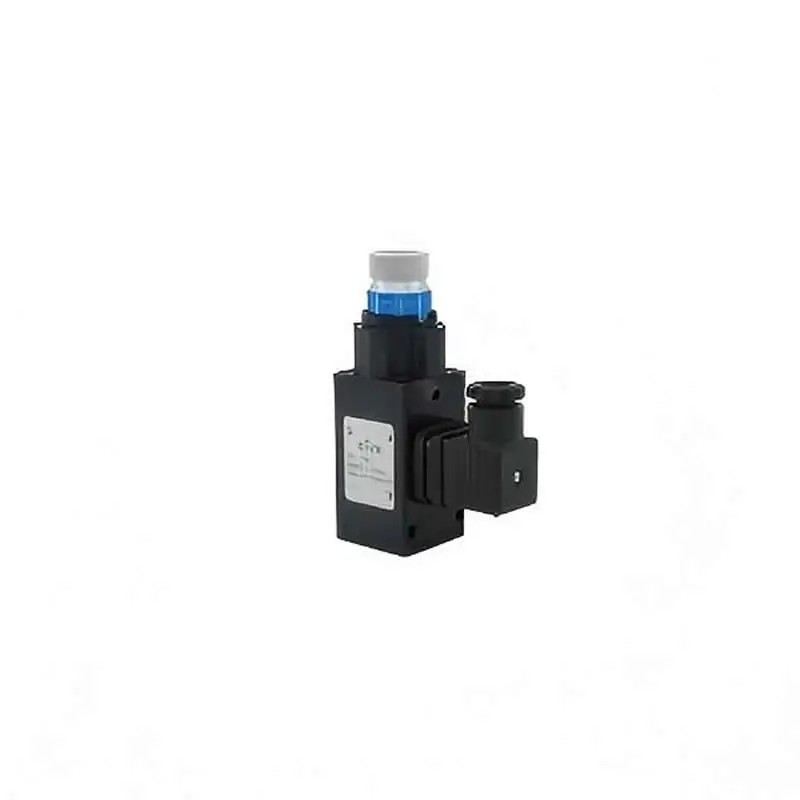

  • ZSM

    ZSM

    Case Material: Aluminum Oxide Connection Material: Stainless Steel Repeatability (Reference Temperature 25℃): ±2%FS Protection Class (EN60529): IP65 Process Connection: G1/4" Internal ThreadMeasuring Element: Piston Sealing Materials:                             Piston: PTFE (Dynamic), NBR or Fluororubber (Static)                             E...

    Send Inquiry

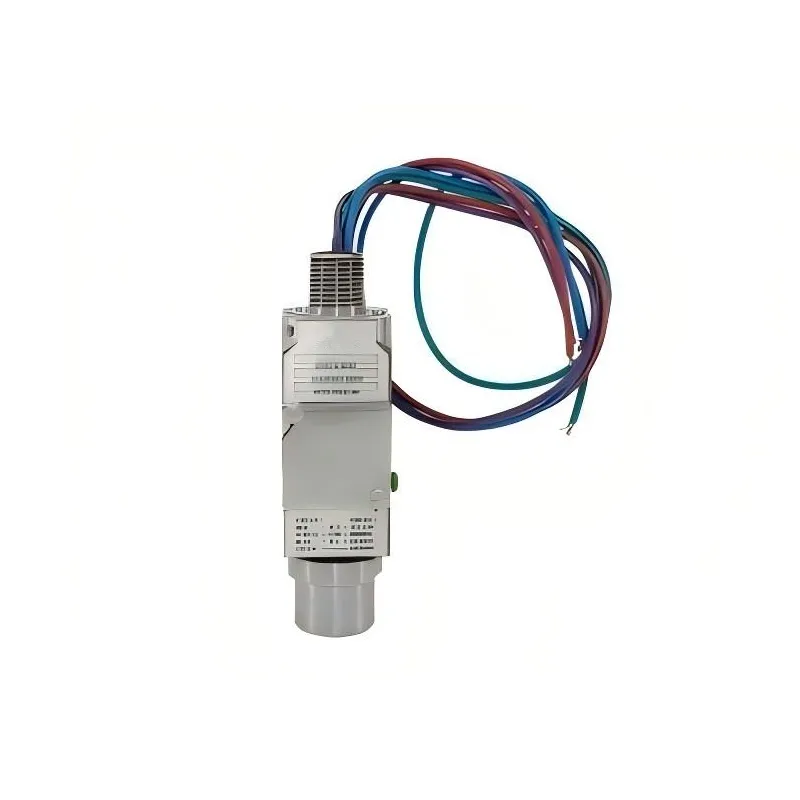

  • KY12-11

    KY12-11

    Case Material: Stainless steel Connection Material: Stainless steel Repeatability (Reference Temperature 25℃): ±2%FS Protection Class (EN60529): IP68 Process Connection: 1/4"NPT female thread Measuring Element: Diaphragm/piston Sealing Materials：                               Diaphragm: NBR                               Piston: PTFE...

    Send Inquiry

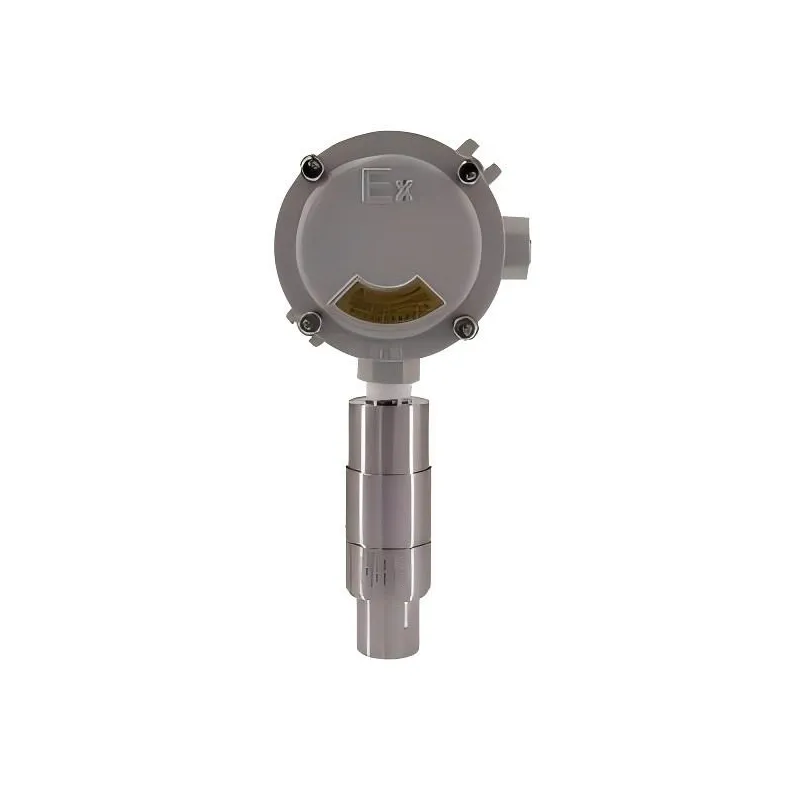

  • KY12-12

    KY12-12

    Case Material: Stainless steelConnection Material: Stainless steelRepeatability (Reference Temperature 25℃): ±2%FSProtection Class (EN60529): IP68Process Connection: 1/4"NPT female threadMeasuring Element: Diaphragm/pistonSealing Materials:                              Diaphragm: NBR                              Piston: PTFE (dynamic), NB...

    Send Inquiry

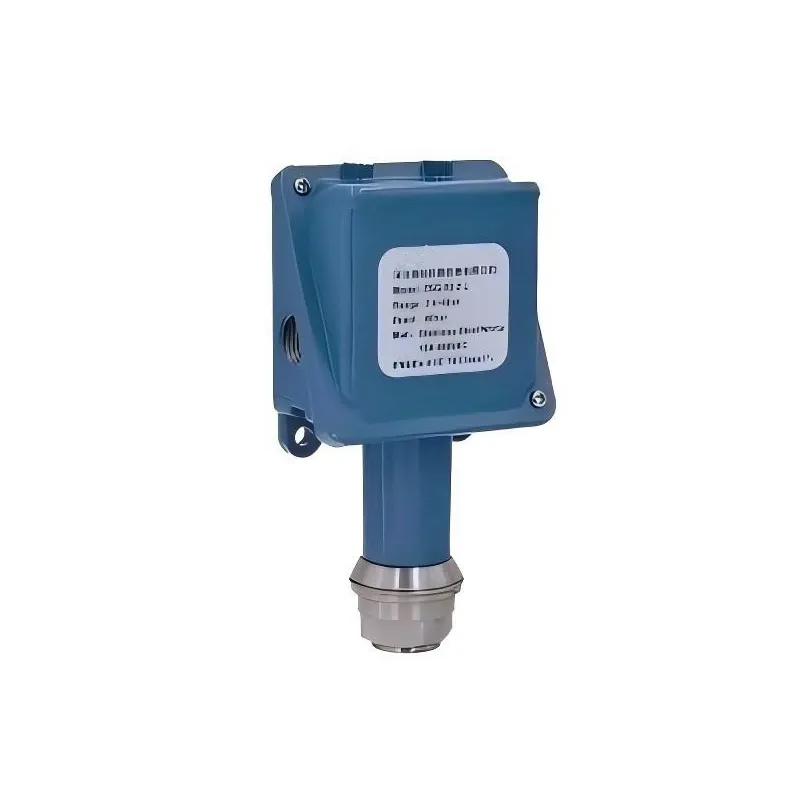

  • ZSG

    ZSG

    Material of object: Aluminum shell with spraying Material of connection: 304, 316L, S31803, HC Monel Repeatability (reference temperature 25℃): ±2%FS Protection class (EN60529): IP65 Process connection: 1/4" NPT, 1/2" NPT, M20×1.5, G1/2 Measuring element: Diaphragm/piston Sealing material:                            Diaphragm: NBR;                      ...

    Send Inquiry

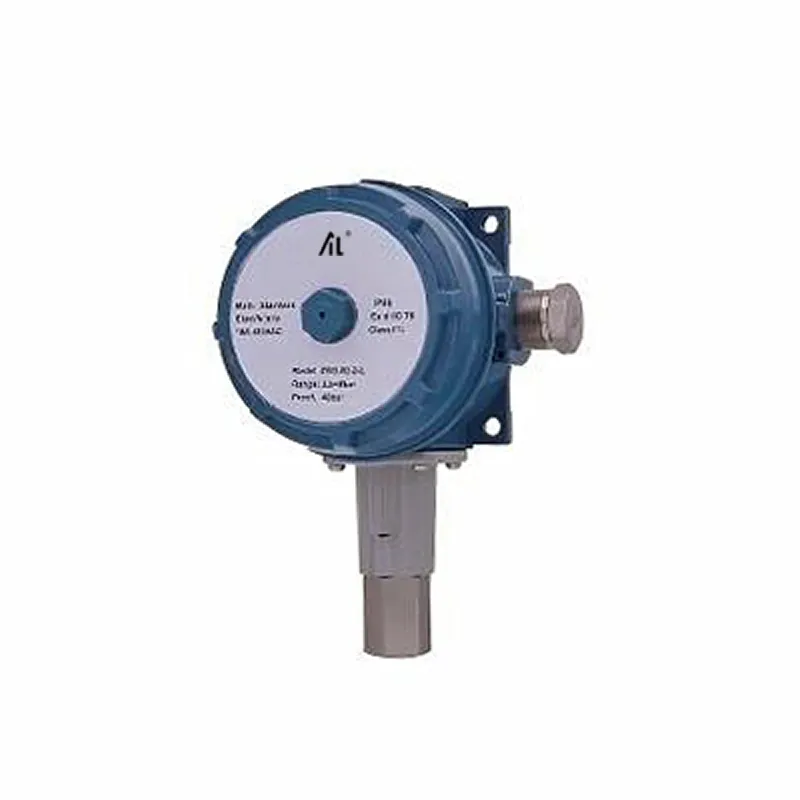

  • KY12-15

    KY12-15

    Case Material: Aluminum shell with spraying Connection Material: 304, 316L, S31803, HC, Monel Repeatability (Reference Temperature 25℃): ±2%FS Protection Class (EN60529): IP68 Process Connection: 1/4"NPT, 1/2"NPT, M20×1.5, G1/2 Measuring Element: Diaphragm/piston Sealing Materials:                              Diaphragm: NBR                        &nbsp...

    Send Inquiry
