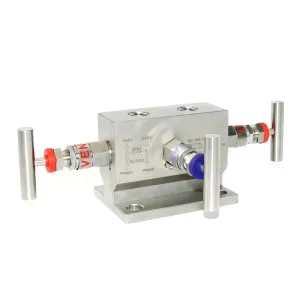

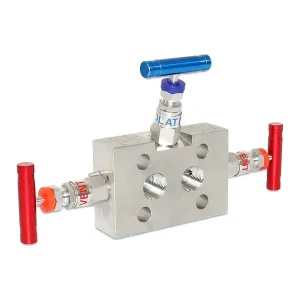

A three-valve manifold is an essential component in various industrial processes, particularly in the measurement and control of fluid flow, pressure, and temperature. It is widely used in conjunction with pressure transmitters, differential pressure (DP) transmitters, and other instrumentation devices to ensure accurate and reliable measurements while maintaining system safety and efficiency. Structure and ComponentsThe three-valve manifold consists of three main valves integrated into a single compact unit. These valves are typically arranged in a specific configuration to facilitate precise control over the flow of process fluids. The three valves include:1. High-Pressure Valve (HP Valve): This valve is connected to the high-pressure side of the process line. It allows the operator to isolate or open the flow from the high-pressure source.2. Low-Pressure Valve (LP Valve): This valve is connected to the low-pressure side of the process line. It serves a similar purpose to the HP valve but for the low-pressure side.3. Equalizing Valve (EQ Valve): This valve is positioned between the HP and LP valves. It is used to equalize the pressure across the transmitter or to vent the system when necessary. FunctionalityThe primary function of a three-valve manifold is to provide a safe and efficient way to isolate, calibrate, and vent pressure transmitters or DP transmitters. Here’s how it works:1. Isolation: The HP and LP valves can be closed to isolate the transmitter from the process line. This is particularly useful during maintenance, calibration, or replacement of the transmitter.2. Equalization: The EQ valve can be opened to equalize the pressure on both sides of the transmitter. This ensures that the transmitter is not subjected to unnecessary stress and helps in achieving accurate zero-point calibration.3. Venting: The EQ valve can also be used to vent the system, releasing trapped pressure or fluid, which is crucial for safety and proper system operation. ApplicationsThree-valve manifolds are widely used in industries such as oil and gas, chemical processing, power generation, and water treatment. They are particularly valuable in applications involving differential pressure measurement, such as flow measurement across an orifice plate, level measurement in tanks, or filter monitoring. Advantages- Safety: The manifold provides a safe way to isolate and vent pressure, reducing the risk of accidents or equipment damage.- Efficiency: It simplifies the process of calibration and maintenance, minimizing downtime and improving operational efficiency.- Compact Design: The integrated design saves space and reduces the complexity of piping systems.- Versatility: It can be used with various types of transmitters and in different process conditions. ConclusionThe three-valve manifold is a critical tool in industrial instrumentation, offering a reliable and efficient solution for managing pressure and flow in process systems. Its robust design, combined with its safety and functionality features, makes it indispensable in ensuring accurate measurements and smooth operations across a wide range of applications.
